ML20 Location Water Leak Controller
ML20 Location Water Leak Controller Products Description

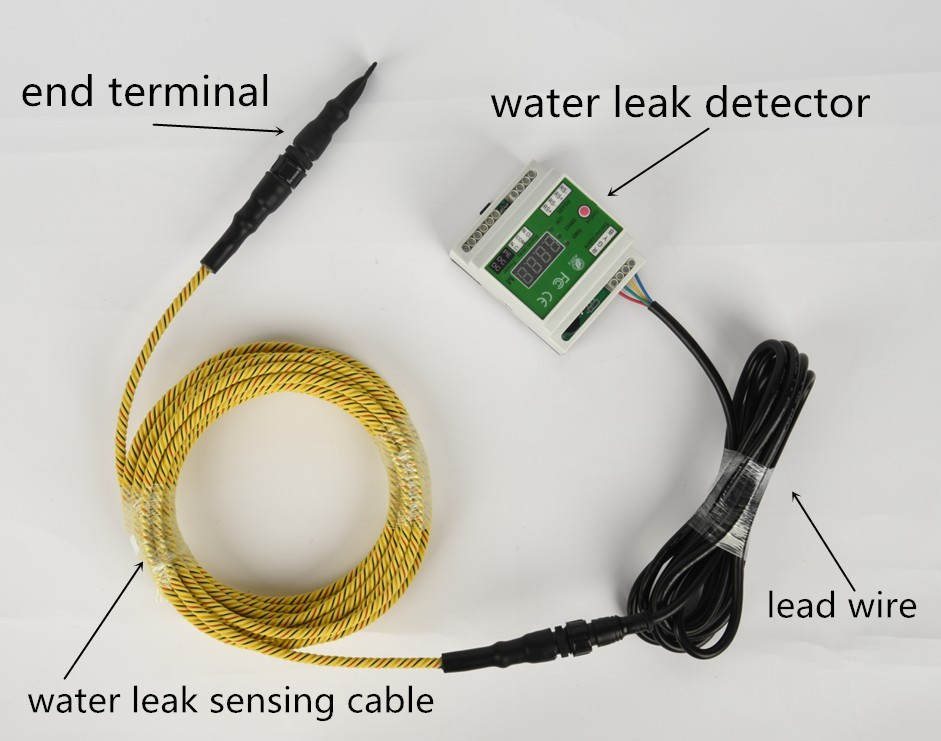

ML20 Location water leak controller can detect 1500m sensing cable. It’ll alarm by flash and sound once there are water leaks on the cable, and the leakage point will display on the LCD screen and the relays will be on automatically. Combined with the MOD BUS RTU protocol, ML20 makes it easy to integrate with the monitoring system. ML20 can be used as an independent alarm, also can be connected to another monitoring system. It’s widely used in the monitoring machine rooms, warehouses, museums, industrial, fields to realize real-time leakage detecting.
Features
AC/DC 9~24V power supply
Easy guide rail installation
32 leakage records can be kept
Relay outputting and NO/NC can be choose
Leakage point and cable error will display on the nixie tube
Baud rate and module can be set on the software, no switch
Super anti-static, anti-lighting, and anti-surge to make sure the operation
Twisted-paired cable with RS-485 serial communication, standard Modbus protocol, the furthest communication can reach 1200m
Power, leakage, cable error, and communication status display on the LCD screen
Technical Data
|
Basic Characteristics |
Sensor compatibility |
sensing cable、TraceTek domestic same type leakage sensing cable |
|
Maximum length cable |
1500m |
|
|
Accuracy |
Sensor cable’s length of 0.5%±0.5m |
|
|
Environmental rating |
Storage temperature |
-40 ℃~60 ℃（0 ℉~140 ℉） |
|
Operating temperature |
-20 ℃~50 ℃（32 ℉~122 ℉） |
|
|
Humidity |
5%~95%（non-condensing） |
|
|
Power |
Sensor compatibility |
AC/DC 9~24V, 3W |
|
Serial interface |
Network configuration |
RS-485 double wire network, the baud rate can be set，the factory default value is 9600, choose-able address is from 0 to 255, the default address is 0 |
|
|
Communication protocol |
MODBUS RTU |
|
Relay Contactor |
Function |
NO, NC can be chosen; leakage alarm or sensor error alarm |
|
Rating |
AC125V，0.5A，DC24V，1A |
Installation
Note: In order not to damage the controller, please keep its original package, open it until ready to install it.
Installation place choosing
Choose a location where the module will be protected from the elements, temperature extremes, or heavy vibration. The ML20 is designed to be snapped onto a standard 35 mm DIN rail. Existing electrical or instrumentation cabinet-swith spare rail space make good mounting locations. It is also possible to install a small section of DIN rail directly on a wall or cabinet surface and mount the ML20 in any location as long as it does not create a tripping hazard or expose the ML20 to impact damage. The ML20 should be mounted within a 1200m wire run from the control system host. Contact the factory for methods to increase the wire run distance beyond 1200m.
