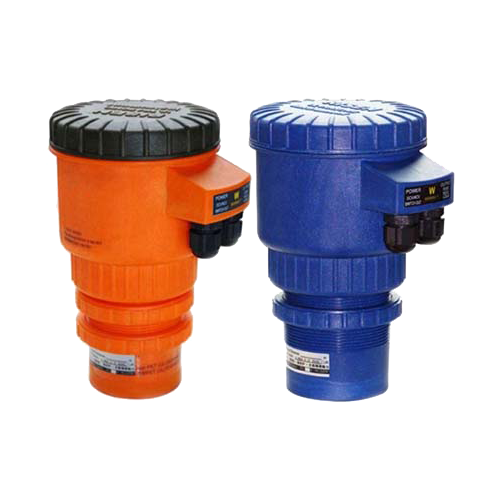

MU15 Integrated Ultrasonic Liquid Level Meter

MU15 ultrasonic liquid level meter is high protection class and multi-function type measuring instrument. It is all sealed guard and up to IP68 protection class and suitable for high-temperature environment. With a wide range of temperature compensation and the original ERD interference intelligent recognition system, the measurement can achieve high accuracy and stability.It can be used to measur

MU15  Integrated Ultrasonic Liquid Level Meter Products Description




Characteristics

Can display different information including level, weight, temperature, output current/voltage, limit switches, level address, etc.

Setting function of display stability, display resolution d = 1cm, d = 1mm (optional) with 4mA, 20mA digital adjustment function, it is easy to debug.

Select the transmit power level between1-15m, with the setting function of detection period 10-100 times per second.

Suitable for the outdoor environment, can be customized up to IP68 waterproof



Technical data

Measure range

5m, 10m, 15m(Optional within 15m)

Non-detection zone

≤300~800mm (Due to different sensor ranges and configuration)

Accuracy

±0.5%F.S, ±0.25%F.S customizable

Full beam angle

15°, 12°, 9°(Due to different sensor)

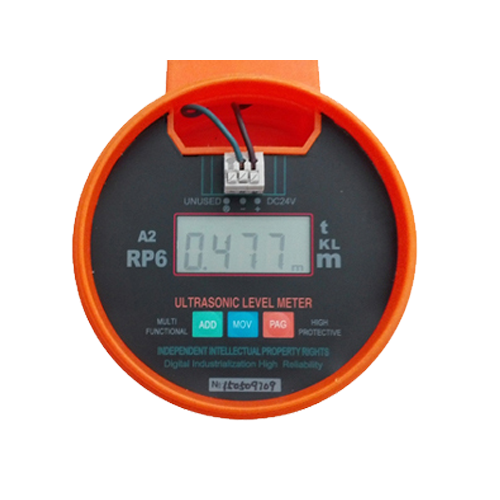

Display

4 digits LED (4-20mA two wires output is LCD)

Output signal

4-20mA three wires (default), RS485 RISEN-PC agreement.

Optional: 4-20mA two wires, four wires.

0-5V, 1-5V RS485 Modbus-RTU agreement.

0-10V,1-10V, RS232; Relay, Simultaneous output of multiple signals customizable

Power supply

DC24V, Optional DC12V, or customize

Working temperature

-10~60 ℃

Working humidity

≤80%RH No condensation

IP Class

IP66 (IP68 customizable)

Wiring

Push connector

Installation

Screw-in installation, Thread size M68×2.0mm or Coil clamping installation, Standard one spiral ring, hole size Φ70mm

Application environment

Atmospheric pressure, non-explosion-proof, non-corrosive environment(Intrinsically safe explosion-proof version customizable)



Dimensions: in mm
