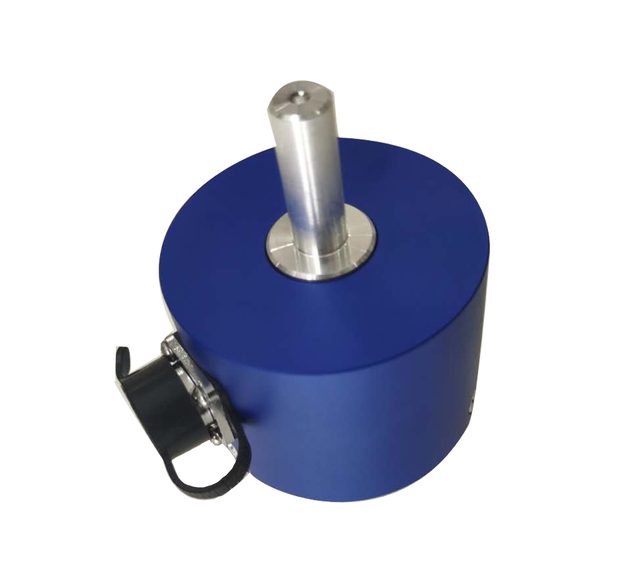

Rotating Torque Transducer/Shaft Torque Sensor M-TD12

M-TD12 Rotating torque sensor is a coupler that converts torque signals. The 15V working voltage is used in the transmitter to generate a 10V bridge voltage with tens of thousands of grades of accuracy to supply the transformer bridge, and then amplify it into a Km V-level strong signal, and then send it to the V/F converter. Output voltage signal or frequency signal proportional to the amount of

M-TD12 Rotating Torque Transducer/Shaft Torque Sensor Description




Feature

1. Suitable for detecting the torque value of non-rotating bodies, the maximum deflection angle is ≥360 degrees.

2. Measuring static torque

3. Can measure both static torque and dynamic torque

4. High measurement accuracy and good stability

5. Small size, lightweight, easy to install

6. Continuous measurement of forward and reverse torque without repeated zero adjustment

7. The measured elastic body is strong and can withstand 100% overload

8. Strong anti-interference

9. The coupler part can be used independently from the secondary instrument, as long as the +15V power supply is sent     according to the socket pin number, it can output a voltage signal or a square wave frequency signal proportional to the torque



Working principle

M-TD12 Rotating torque sensor is a coupler that converts torque signals. The 15V working voltage is used in the transmitter to generate a 10V bridge voltage with tens of thousands of grades of accuracy to supply the transformer bridge, and then amplify it into a Km V-level strong signal, and then send it to the V/F converter, output voltage signal or frequency signal proportional to the amount of torsion strain.



Torque Sensor Technical Data

           Measure Range

              0.1N.m-10.000N.m (in 20 parts)

Operating Voltage

15V

Accuracy

±0.5%(F·S)

Output Signal

1-5V or 5-15K Hz

Frequency Signal

0-12V

Load Current

10mA

Torque

3V(15K Hz)

Positive Full Scale

5V  15 KHZ

Reverse full scale

1V 5 KHZ

Signal Socket

(1)0V. (2)+15V. (3)Torque signal.



Dimensions (mm):

     N.m

      ΦD

       Φd

        L

        E

        A

         b

Weight(kg)

0.01-2

60

10

105

30

45

3

0.6

5-100

60

18

105

30

45

6

0.9

200

70

28

150

46

58

8

1.5

500

80

38

180

60

60

10

2

1000

90

48

207

72

63

14

3

2000

100

55

246

90

66

16

5

5000

120

72

288

110

68

20

10

10k-20k

140

98

290

105

80

28

17
