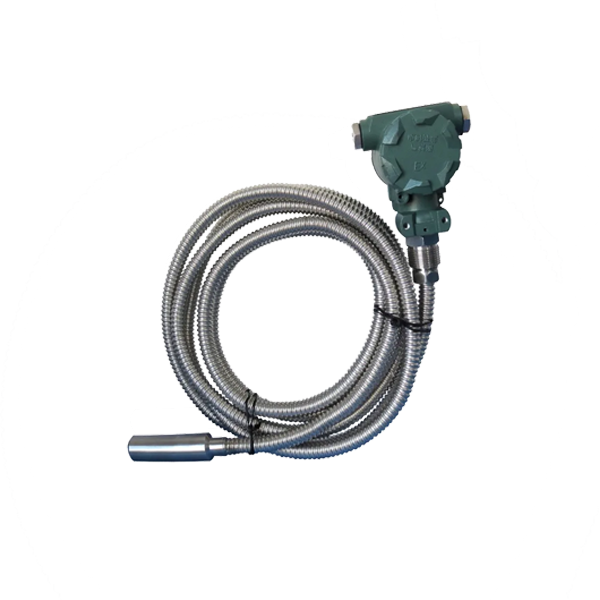

MLT13 Bellows Pipe Level Guage
Bellows pipe level gauge is completely sealed for submersion in liquid, can be used to measure water level, well depth, groundwater level, especial harsh environment that common level pressure sensors can not work. common accuracy is 0.5%FS, with voltage or 4-20mA output signals and display the pressure measure results directly.
MLT 13 Bellows Pipe Level Guage Product Description
Feature
1. High accuracy
2. Especially designed with stainless stain bellows pipe
3. High reliability and stability
4. Cost-efficient
5. Explosion-proof: Exia II CT6 Ga
6. Triple lightning protection
Specification
|
Range |
0~0.5... 50mH2O |
|
Output signal |
4~20mA(1~5V) 2-wire |
|
0~10mA(0~5V) 3-wire |
|
|
Accuracy |
0.1/0.2(0.25)/0.5%FS |
|
Application temperature |
-10~80ºC |
|
Storage temperature |
-40~100ºC |
|
Housing |
1Cr18Ni9Ti |
|
Medium |
liquid compatible with SS316L |
|
Power supply |
12~36VDC |
|
Protection |
IP66 |
|
Explosion-proof |
Exia II CT6 Ga |
