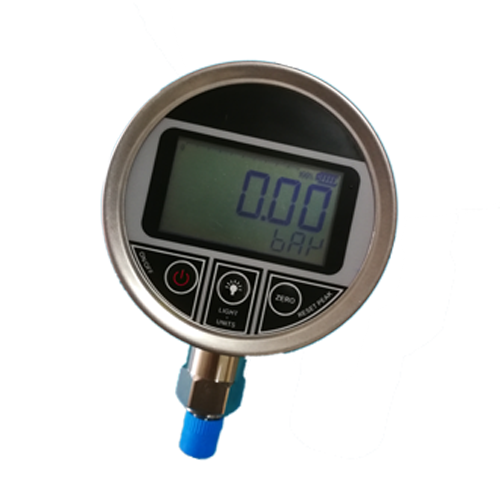

MPG10 Wireless Pressure Gauge

MPG10 wireless pressure gauge is a kind of digital pressure sensor with a display that is made with an entire electronic structure and powered by a 9V battery. It is easy for field installation. This digital display pressure gauge is using high accurate piezoresistive pressure sensors. It has an automatic turn-off function in 1~15min.

MPG10 Wireless Pressure Gauge Product Description




MPG10 series digital pressure gauge is made with an entire electronic structure and powered by a 9V battery. It is easy for field installation. This digital display pressure gauge is using high-accuracy piezoresistive pressure sensors, which are located in the front end of the PG series. The output signal of the pressure sensor is processed and amplified by high accuracy and low-temperature coefficient amplifier and then transferred to an A/D switch to transform the digital signal which can be processed by the microprocessor. After processing operation, the pressure gauge will demonstrate the actual value of the pressure by LCD indicator. This product is widely used in such industries as water and electricity, running water, petroleum, chemical, and machinery, for the measurement and demonstration of fluid medium's pressure.



Features

1. Large-screen LCD display, backlight, high resolution, easy to read

2. Automatically record the maximum pressure values during the measurement

3. Pressure on the percentage of dynamic display, (the progress bar display)

4. Five engineering units: psi, bar, kpa, Mpa, kg / cm2

5. Micro-power consumption, work over 2 years in power-saving mode, 2,000 hours continuous work.

6. Parameter correction, correct zero, and error in-field application.

7. Pressure range already set before use

8. Sampling rate: 4 times/sec

9, Applicable to gases and liquids compatible with stainless steel



Specifications

                 Pressure range

                  0-8Bar

                    Accuracy

              0.20%

Overload capacity

200%

Pressure type

gauge pressure

Stability

≤0.1% /year

Battery voltage

9VDC

Display

LCD

 Display range

-1999~9999

Application temperature

-10℃~95℃

Relative humidity

≤80%

Mounting thread

BSP1/4”

Interface Material

Stainless Steel

Auto-shutoff

15 minutes

Backlight

5 minutes



User notes

1. Stored and used in an environmental temperature of -10℃~ 60℃, the relative humidity less than 80%.

2. Should be concentric and parallel when connecting digital pressure gauge and pressure system.

3. Please use a 9V alkaline battery(6LR61) when replacing the battery.

4. When installing the gauge, please use the right way
