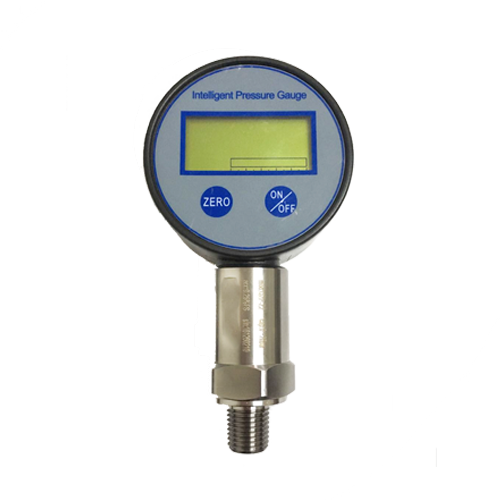

MPG12 Battery Powered Pressure Meter
MPG12 Battery Powered Pressure Meter Product Description
Features
1. Large-screen LCD display, backlight, high resolution, easy to read
2. Automatically record the maximum pressure values during the measurement
3. Pressure on the percentage of dynamic display, (the progress bar display)
4. Five engineering units: psi, bar, kpa, Mpa, kg / cm2
5. Micro-power consumption, work over 2 years in power-saving mode, 2,000 hours continuous work.
6. Parameter correction, correct zero, and error in-field application.
7. Pressure range already set before use
8. Sampling rate: 4 times/sec
9, Applicable to gases and liquids compatible with stainless steel
Specifications
|
Pressure range |
0-8Bar |
Accuracy |
0.20% |
|
Overload capacity |
200% |
Pressure type |
gauge pressure |
|
Stability |
≤0.1% /year |
Battery voltage |
9VDC |
|
Display |
LCD |
Display range |
-1999~9999 |
|
Application temperature |
-10℃~95℃ |
Relative humidity |
≤80% |
|
Mounting thread |
BSP1/4” |
Interface Material |
Stainless Steel |
|
Auto-shutoff |
15 minutes |
Backlight |
5 minutes |
Installation
MGP series pressure gauge/meter can be directly mounted in the hydraulic pipe on the road through the mounting thread (BSP1/4”). In critical applications, such as severe vibration or shock, the soft hose is strongly recommended to connect the digital pressure gauge to reduce the effect caused by the severe vibrations and shocks
